Bottom valves
Our MDB Pharma Solutions® aseptic tank bottom valves are designed to offer reliability and performance in demanding pharmaceutical environments. Featuring an innovative design, these valves accommodate a shutter that eliminates dead zones, thus ensuring full product drainability and facilitating maintenance during maintenance periods.
Robust and reliable design
Our aseptic valves feature a robust design that guarantees optimal performance in pharmaceutical applications. The shutter, made of Teflon (PTFE), is designed to withstand CIP-SIP cycles and exposure to chemical agents, ensuring product integrity and equipment durability.
Easy maintenance
The modular design of our valves allows for quick and easy valve replacement during maintenance periods, thus minimizing downtime and ensuring continuous, efficient operation.
High quality materials
Both the valve plug and body are machined in-house using high-quality materials. The standard version of the body is made of ASTM A316L stainless steel, although we also offer options in ASTM SS32205 duplex stainless steel and nickel-based steels such as Hastelloy and Inconel, depending on the customer's needs.
Custom settings

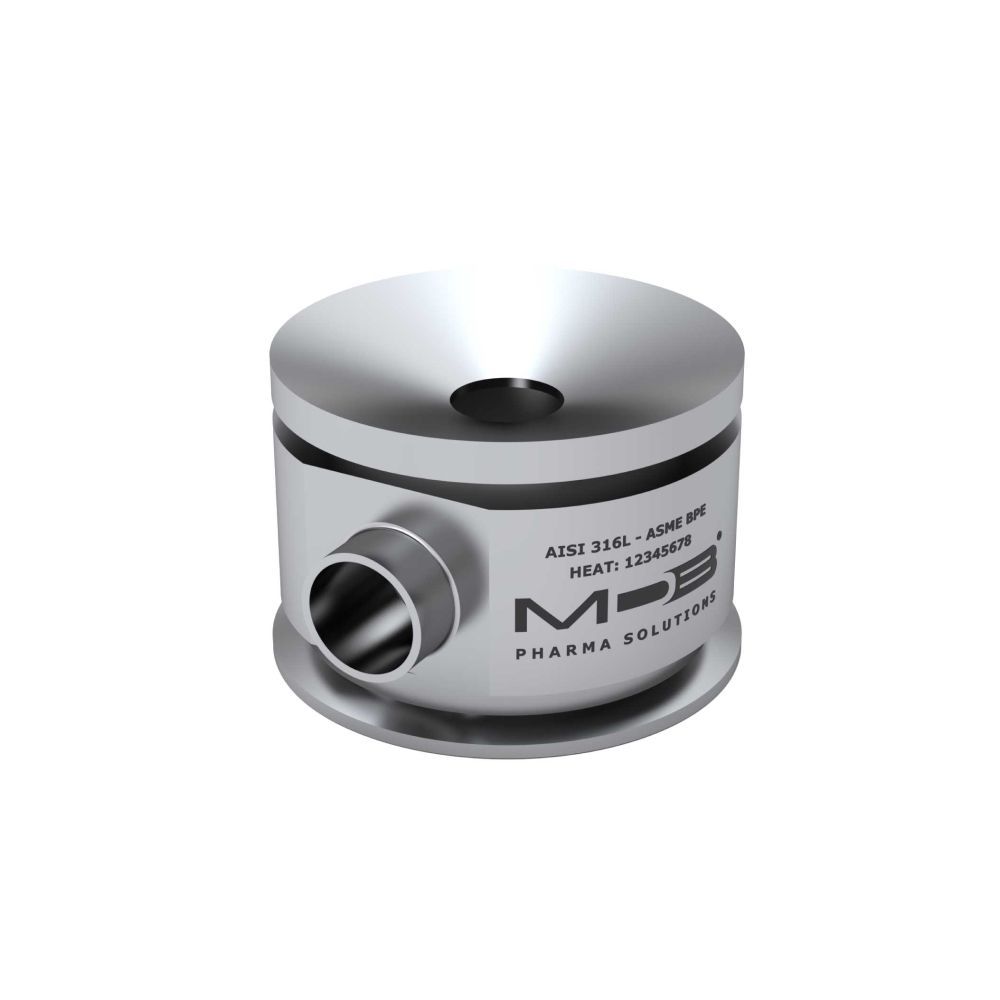

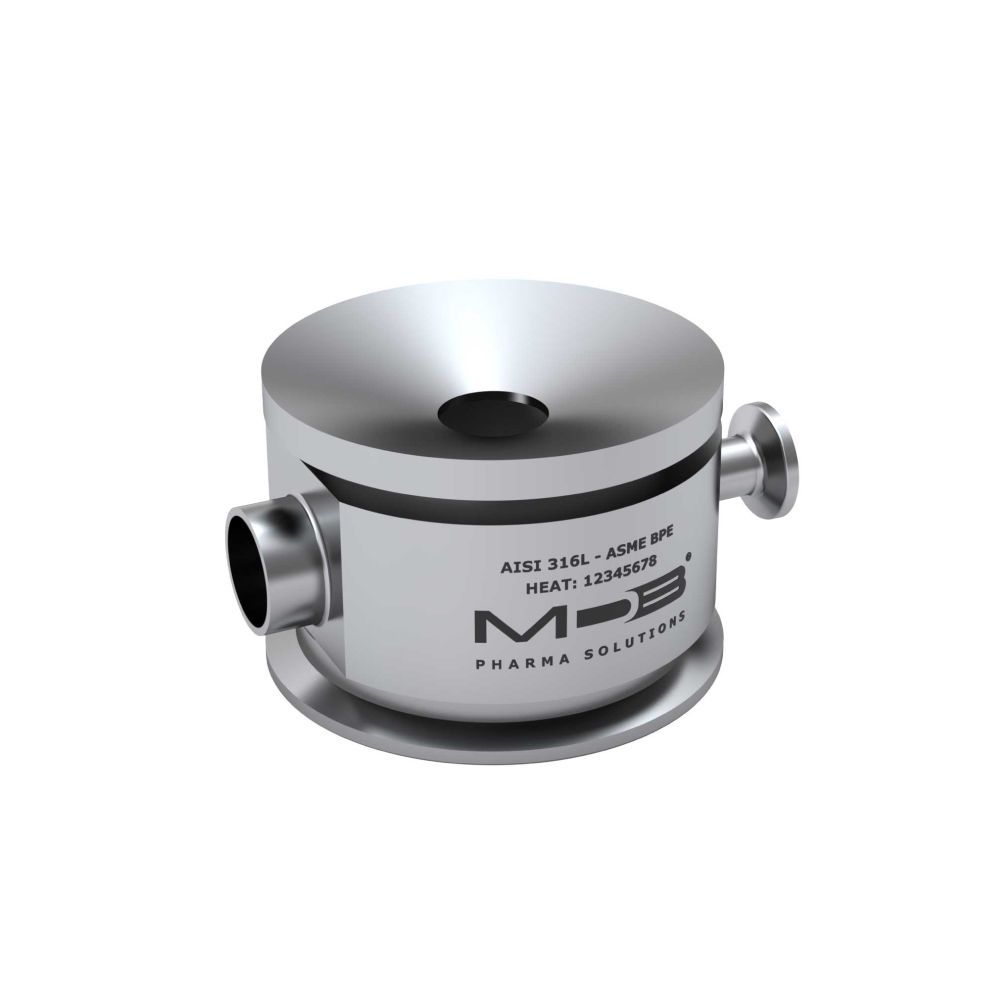

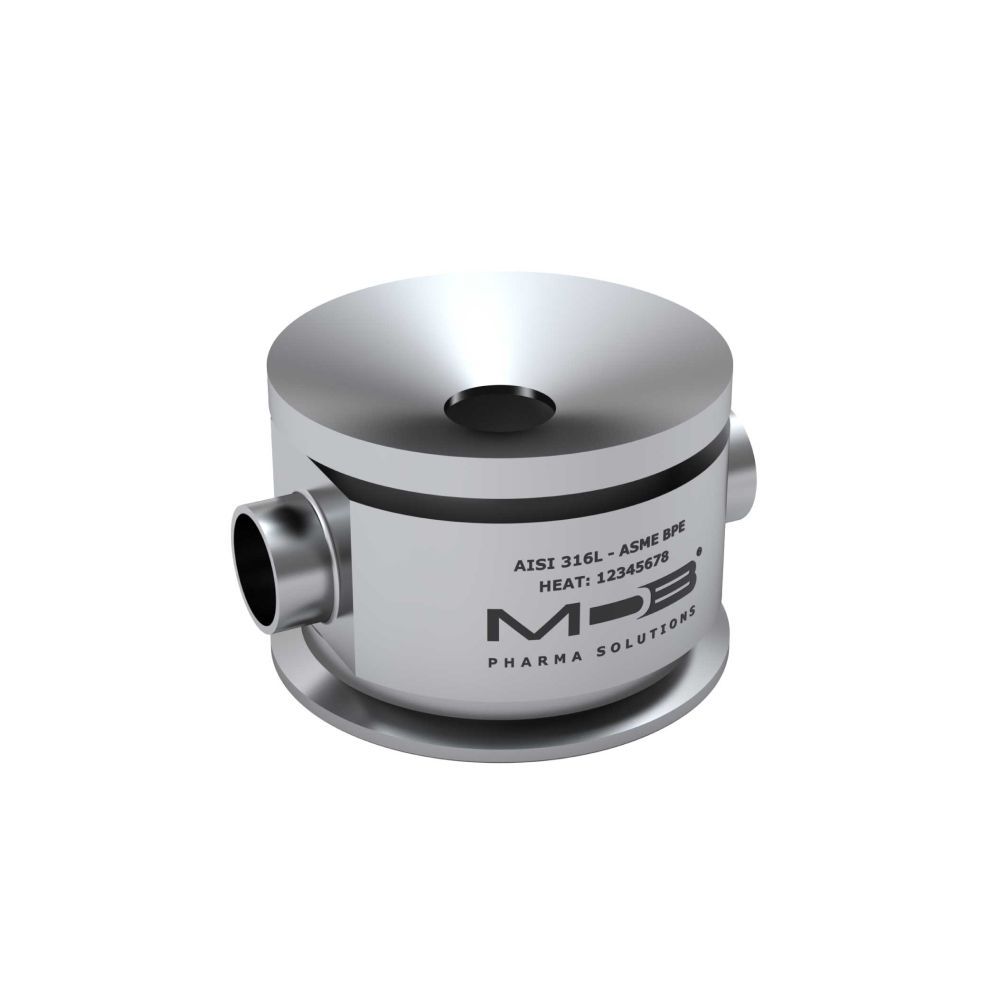

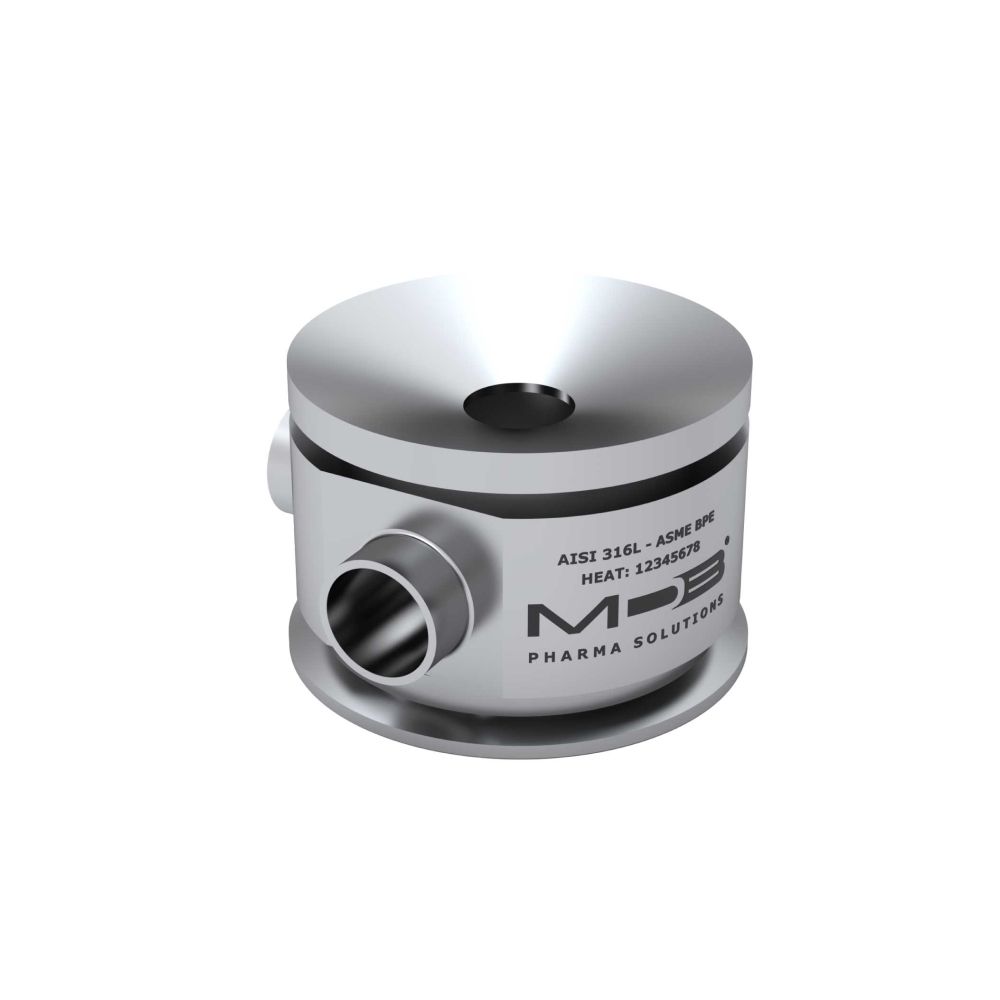

We offer various configurations depending on the product inlets and outlets. Our standard versions feature short butt-weld ends, but we can also supply valves with orbital welding or Tri-Clamp connections on request. In addition, if the customer prefers, we can provide bodies with clamp connections, provided the dimensions and angle of the outlet connections are specified.
| Size | d1 (mm) | D2 (mm) | D3 (mm) | D4 (mm) | ØTube |
|---|---|---|---|---|---|
| ¾ ‘’ ASME BPE | 60 | 15,7 | 25 | 64 | 19,07 |
| 1 ‘’ ASME BPE | 80 | 22 | 27 | 77,5 | 25,4 |
| 1-1/2 ‘’ ASME BPE | 80 | 34,8 | 22 | 77,5 | 38,1 |
| 2 ‘’ ASME BPE | 100 | 47,5 | 30 | 90 | 50,8 |
| 2-1/2’’ ASME BPE | 120 | 60,2 | 35 | 123 | 63,5 |
| 3’’ASME BPE | 140 | 73 | 45 | 144 | 76,2 |
Applied Technologies
Design pressure
-1 10 barg
Design temperature
-20 200ºC
Interior finish
Ra≤0.5 Conforms to ASME BPE SF1
On request, the option of electropolishing after mechanical polishing can be offered.
Exterior finish
Ra≤0.8
Marking
All bodies are laser engraved with the type of material and casting number.
Quality
Material certificates 3.1 for the body and 2.1 for the shutters are delivered
Application rules
According to PED and ASME VIII div.1
Materials
Standards
Body
ASTM A182 F316
Actuator
ASTM A182 304
Handle
Anodized aluminum
Shutter
FDA compliant PTFE
On request, certificate 3.1 of the valve body as well as certificate 2.2 of the shutter can be supplied.
MDB valves can also be supplied in the following materials:
| Valve body | Actuator body |
|---|---|
| Duplex – SAF 2205 | 316 Stainless Steel |
| Hastelloy – ASTM B335 | Duplex – SAF 2205 |
| Inconel I625 |
