FiltrosdeVenteo
Designed and manufactured in-house, adaptable to customer specifications, our vent filter housings are designed to house one or more filters.
FiltroBasic
The Basic filter housing designed for venting atmospheric tanks in pharmaceutical environments.
FiltroBasicHeated
The Basic Heated filter housing is a heated version designed for venting atmospheric or pressure tanks in pharmaceutical environments.
FiltroProHeated
The Pro Heated model is an option for purified water storage tanks and for injectables in the pharmaceutical industry.
FiltroDoubleProHeated
The Double Pro Heated is the multi-filter version of the Pro Heated model, designed for large tanks or those with high consumption of purified water.
FiltroProHeated180º
Used in purified and injectable water storage tanks, with a design in accordance with ASME VIII div.1 and ASME BPE.
FiltroInLine
The In Line Filter Housing is designed for in-line fluid filtration in pharmaceutical environments.
CharacteristicsMain
Bayonet Type Connection: The connection of the CODE 7 filter to the base of the housing is made by a quarter turn, ensuring a quick and safe installation.
Design Pressure and Temperature: The filter housing is designed to withstand a pressure of -1/ 3 barg and a temperature of up to 150°C, meeting the most demanding industry standards.
Regulatory Compliance: Manufactured according to ASME VIII Div.1 design code, our housings guarantee maximum quality and safety in every application.
High Quality Materials: Vent housings are manufactured from ASTM A182 F-316 and ASTM A240 316L stainless steel for product contact parts, ensuring exceptional corrosion resistance and optimum durability.
Customization Options: We offer the possibility of manufacturing the housings in other materials to meet any specific customer requirements.
Finishes:
The internal roughness of the parts in contact with the product complies with ASME BPE SF1 RA≤0.5µm standards, while the external finish of the box is pharmaceutical satin, with an average roughness Ra≤0.8µm.
In addition, our filter housings feature EPDM CLAMP connection gaskets, although we also offer other material options such as PTFE.
DescriptionbyModel
BasicHeated
ProHeated
DoubleProHeated
Describe the article or answer the question so that interested visitors can learn more. You can highlight this text with bullets, italics, bold, or by adding links.ButtonProHeated180
Describe the article or answer the question so that interested visitors can learn more. You can highlight this text with bullets, italics, bold, or by adding links.ButtonInLine
FiltroBasic
Designed for venting atmospheric tanks in pharmaceutical environments, its structure, developed according to regulations ASME BPE, guarantees the total absence of loose parts inside, thus ensuring a correct seal and no contaminants. The connection by means of a 4” clamp makes assembly easier during maintenance operations, providing an efficient and safe installation. This housing is perfect for venting purified water and fermentation tanks in the food industry. In addition, it is available in versions for 5” filters and multifilters, offering versatility to adapt to various needs.
CaracterísticasBasic
| Type | H | h | D | Inlet | Outlet | Condensate outlet | Heating1 | Heating2 | Integrity test1 | Integrity test2 |
|---|---|---|---|---|---|---|---|---|---|---|
| Basic | 400 | 315 | 84 | 1” TC ASME BPE | 1” TC ASME BPE | No | No | - | Yes / optional | Staubli RBE.03 Sanitaty valve |
| Basic | 400 | 315 | 84 | 1” TC ASME BPE | 1” TC ASME BPE | No | No | - | Yes / optional | TC ½” ASME BPE |
| Basic | 400 | 315 | 104 | 1-1/2” TC ASME BPE | 1-1/2” TC ASME BPE | No | No | - | Yes / optional | Staubli RBE.03 Sanitaty valve |
| Basic | 400 | 315 | 104 | 1-1/2” TC ASME BPE | 1-1/2” TC ASME BPE | No | No | - | Yes / optional | TC ½” ASME BPE |
| Basic | 400 | 315 | 104 | 2” TC ASME BPE | 2” TC ASME BPE | No | No | - | Yes / optional | Staubli RBE.03 Sanitaty valve |
| Basic | 400 | 315 | 104 | 2” TC ASME BPE | 2” TC ASME BPE | No | No | - | Yes / optional | TC ½” ASME BPE |
Basic
ProHeated
DoubleProHeated
Describe the article or answer the question so that interested visitors can learn more. You can highlight this text with bullets, italics, bold, or by adding links.ButtonProHeated180
Describe the article or answer the question so that interested visitors can learn more. You can highlight this text with bullets, italics, bold, or by adding links.ButtonInLine
FiltroBasicHeated
The Basic Heated filter housing is a heated version designed for venting atmospheric or pressurized tanks in pharmaceutical environments. It meets the rigorous ASME VIII div.1 and ASME BPE standards, and like the Basic model, it completely eliminates loose parts inside to ensure product purity. Its 4” clamp connection facilitates assembly during maintenance, while its external heating system ensures product integrity. In addition, it incorporates a PT-100 temperature probe for precise and safe control. This housing is ideal for applications with purified water and fermentation in the food industry.
CaracterísticasBasicHeated
| H (mm) | h (mm) | D (mm) | Inlet | Outlet | Condensate outlet | Heating1 | Heating2 | Integrity test1 | Integrity test2 |
|---|---|---|---|---|---|---|---|---|---|
| 400 | 345 | 154 | 1” TC ASME BPE | Through connection body | Through connection body | 300W Electrical resistance. External heating insulaton | Temperature sensor type PT-100 to contro the heating resistance temperatura via PLC | No | - |
| 400 | 345 | 154 | 1-1/2” TC ASME BPE | Through connection body | Through connection body | 300W Electrical resistance. External heating insulaton | Temperature sensor type PT-100 to contro the heating resistance temperatura via PLC | No | - |
| 400 | 345 | 154 | 2” TC ASME BPE | Through connection body | Through connection body | 300W Electrical resistance. External heating insulaton | Temperature sensor type PT-100 to contro the heating resistance temperatura via PLC | No | - |
Basic
BasicHeated
DoubleProHeated
Describe the article or answer the question so that interested visitors can learn more. You can highlight this text with bullets, italics, bold, or by adding links.ButtonProHeated180
Describe the article or answer the question so that interested visitors can learn more. You can highlight this text with bullets, italics, bold, or by adding links.ButtonInLine
FiltroProHeated
The Pro Heated model is a reliable and widely used option for storage tanks for purified water and injectables in the pharmaceutical industry. Its design complies with the demanding ASME VIII div.1 and ASME BPE standards, guaranteeing the highest quality and safety. Like the previous models, it contains no loose parts inside and offers a 4” clamp connection for a secure, contaminant-free seal. Its external heating system and safety system ensure product integrity, with options for condensate discharge. Available for 5” filters.
CaracterísticasBasicProHeated
| H (mm) | h (mm) | D (mm) | Inlet | Outlet | Condensate outlet | Heating1 | Heating2 | Integrity test1 | Integrity test2 |
|---|---|---|---|---|---|---|---|---|---|
| 635 | 525 | 154 | 1” TC ASME BPE | 1” TC ASME BPE | 1/2” TC ASME BPE | 300W Electrical resistance. External heating insulaton | Temperature sensor WIKA TRC-11 to measure the air temperature on the outlet with transmiter | Yes, optional | TC ½” ASME BPE |
| 635 | 525 | 154 | 1-1/2” TC ASME BPE | 1-1/2” TC ASME BPE | 1/2” manual Diaphragm valve TC ASME BPE connection | 300W Electrical resistance. External heating insulaton | Temperature sensor WIKA TRC-11 to measure the air temperature on the outlet with transmiter | Yes, optional | Staubli RBE.03 Sanitaty valve |
| 635 | 525 | 154 | 2” TC ASME BPE | 2” TC ASME BPE | 1/2” actuated Diaphragm valve ASME BPE TC ASME BPE connection | 300W Electrical resistance. External heating insulaton | Temperature sensor WIKA TRC-11 to measure the air temperature on the outlet with transmiter | - | Staubli RBE.03 Sanitaty valve |
Basic
BasicHeated
ProHeated
Describe the article or answer the question so that interested visitors can learn more. You can highlight this text with bullets, italics, bold, or by adding links.ButtonProHeated180
Describe the article or answer the question so that interested visitors can learn more. You can highlight this text with bullets, italics, bold, or by adding links.ButtonInLine

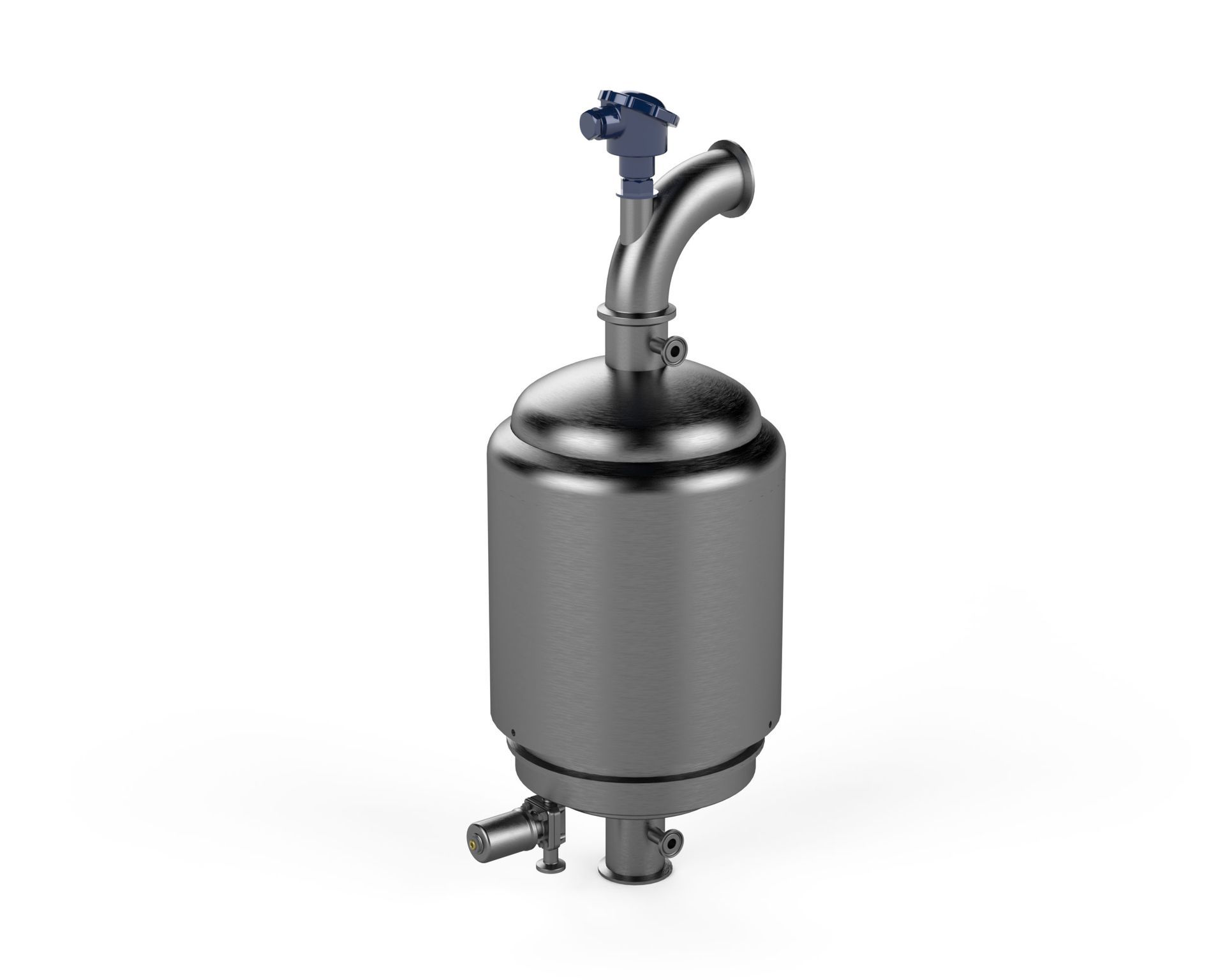

FiltroDoubleProHeated
The Double Pro Heated is the multi-filter version of the Pro Heated model, designed for applications in large tanks or with high consumption of purified water. It meets the strict ASME VIII div.1 and ASME BPE standards, and offers the same integrity and safety features. With a 4” clamp connection and condensate discharge options, this housing provides reliable and efficient filtration. Available for 5” filters.
CaracterísticasDoubleProHeated
| H (mm) | h (mm) | D (mm) | Inlet | Outlet | Condensate outlet | Heating1 | Heating2 | Integrity test1 | Integrity test2 |
|---|---|---|---|---|---|---|---|---|---|
| 670 | 540 | 244 | 1” TC ASME BPE | 1” TC ASME BPE | 1/2” TC ASME BPE | 300W Electrical resistance. External heating insulaton | Temperature sensor WIKA TRC-11 to measure the air temperature on the outlet with transmiter | Yes, optional | TC ½” ASME BPE |
Basic
BasicHeated
ProHeated
Describe the article or answer the question so that interested visitors can learn more. You can highlight this text with bullets, italics, bold, or by adding links.ButtonDoubleProHeated
Describe the article or answer the question so that interested visitors can learn more. You can highlight this text with bullets, italics, bold, or by adding links.ButtonInLine

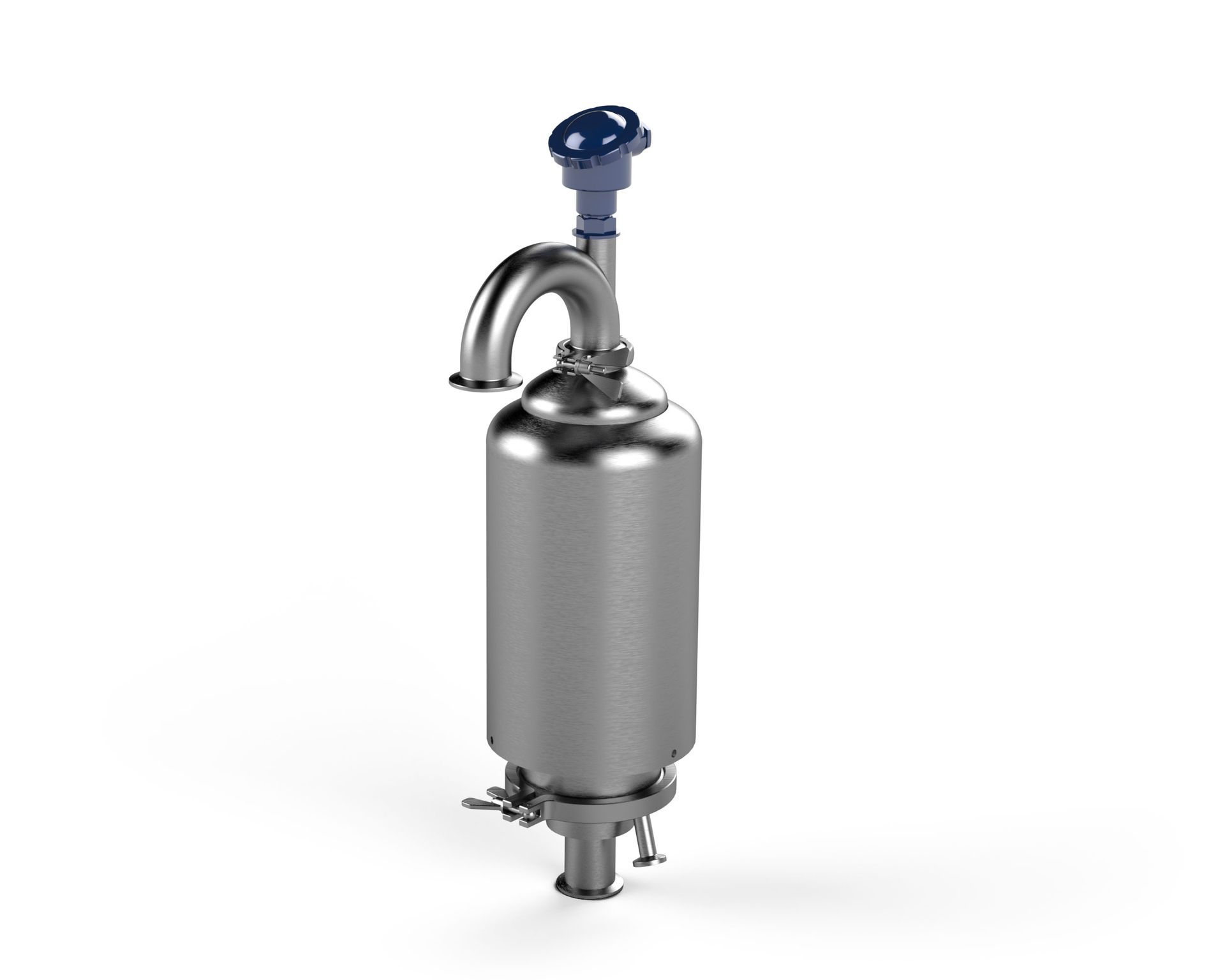

FiltroProHeated180º
Another widely used model for purified and injectable water storage tanks, with a design in accordance with ASME VIII div.1 and ASME BPE. It offers a heating and temperature control system, with options for condensate discharge. Available for 5” filters.
CaracterísticasProHeated180º
| H(mm) | h(mm) | D(mm) | Inlet | Outlet | Condensate outlet | Heating1 | Heating2 | Integrity test1 | Integrity test2 |
|---|---|---|---|---|---|---|---|---|---|
| 635 | 525 | 154 | 1” TC ASME BPE | 1” TC ASME BPE | 1/2” TC ASME BPE | 300W Electrical resistance. External heating insulaton | Temperature sensor WIKA TRC-11 to measure the air temperature on the outlet with transmitter | - | TC ½” ASME BPE |
| 635 | 525 | 154 | 1-1/2” TC ASME BPE | 1-1/2” TC ASME BPE | 1/2” manual Diaphragm valve TC ASME BPE connection | 300W Electrical resistance. External heating insulaton | Temperature sensor WIKA TRC-11 to measure the air temperature on the outlet with transmitter | - | Staubli RBE.03 Sanitaty valve |
| 635 | 525 | 154 | 2” TC ASME BPE | 2” TC ASME BPE | 1/2” actuated Diaphragm valve ASME BPE TC ASME BPE connection | 300W Electrical resistance. External heating insulaton | Temperature sensor WIKA TRC-11 to measure the air temperature on the outlet with transmitter | - | Staubli RBE.03 Sanitaty valve |
Basic
BasicHeated
ProHeated
Describe the article or answer the question so that interested visitors can learn more. You can highlight this text with bullets, italics, bold, or by adding links.ButtonDoubleProHeated
Describe the article or answer the question so that interested visitors can learn more. You can highlight this text with bullets, italics, bold, or by adding links.ButtonProHeated180
FiltroInLine
The In Line filter housing has been specifically designed for in-line fluid filtration in pharmaceutical environments. It complies with ASME BPE regulations and offers a tight, contaminant-free seal. Ideal for applications in reactor feed or prior to dosing of the product into its final container. Available in several variants, including ASME BPE clamp connections for integrity testing and pressure gauges. With its robust structure and innovative design, this housing provides a reliable and efficient solution for fluid filtration in the pharmaceutical industry.
CARACTERISTICASInLine
| H(mm) | h(mm) | D(mm) | Inlet | Outlet | Condensate outlet | Heating1 | Heating2 | Integrity test1 | Integrity test2 |
|---|---|---|---|---|---|---|---|---|---|
| 450 | 310 | 104 | 1” TC ASME BPE | 1” TC ASME BPE | 1/2” TC ASME BPE | 300W Electrical resistance. External heating insulaton | Temperature sensor WIKA TRC-11 to measure the air temperature on the outlet with transmitter | - | TC ½” ASME BPE |
| 450 | 310 | 104 | 1-1/2” TC ASME BPE | 1-1/2” TC ASME BPE | 1/2” manual Diaphragm valve TC ASME BPE connection | 300W Electrical resistance. External heating insulaton | Temperature sensor WIKA TRC-11 to measure the air temperature on the outlet with transmitter | - | Staubli RBE.03 Sanitaty valve |
| 450 | 310 | 104 | 2” TC ASME BPE | 2” TC ASME BPE | 1/2” actuated Diaphragm valve ASME BPE TC ASME BPE connection | 300W Electrical resistance. External heating insulaton | Temperature sensor WIKA TRC-11 to measure the air temperature on the outlet with transmitter | - | Staubli RBE.03 Sanitaty valve |
